Electrical mobility wants dependable high-voltage measurement options to make sure the operational security of on-board installations and charging infrastructure
Fashionable electrical autos function in depth high-voltage networks that carry a whole bunch of volts between numerous electrical gear. To make sure operational security, secure measurement options are required for top DC and AC voltages in addition to all related bodily parameters, from temperature and acceleration to drive and stress.
German specialist cable producer SAB Bröckskes has been growing and producing high-voltage (HV) cables for electrical mobility for a couple of decade. The corporate portfolio consists of devoted measurement cables for temperature, voltage, acceleration and pressure gauges. It additionally consists of single- and multi-channel type-Okay HV sensors, HV Pt100/Pt1000 sensors and HV take a look at adapters.

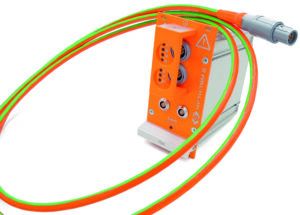

SAB Bröckskes and its know-how associate CSM have launched a measuring system for high-voltage e-mobility parts. The system, consisting of sensor cable, plug, socket and measuring module, permits the usage of uninsulated sensors as much as 1,000 V DC working voltage. It’s safety-attested in response to DIN EN 61010 and designed for cell use in electrical and hybrid autos in addition to stationary installations to measure present, voltage and energy immediately in high-voltage strains. The gear is equally appropriate for measurements on electrified municipal autos in addition to on cell forestry, agricultural and building equipment.
SAB Bröckskes high-voltage (HV) sensor cables, reminiscent of HV two-channel analogue measuring cables (90V), HV four-channel voltage measurement cables (90V) and four-channel voltage measurement cables (1,000V), guarantee a dependable measurement chain from sensor to knowledge acquisition. These additionally allow widespread low-voltage sensors to be built-in into HV functions. CSM has cooperated with the German automotive electronics specialist Vector Informatik to develop a scalable e-mobility measurement system for autos and take a look at benches that permits knowledge logging and measured worth administration in high-voltage and low-voltage environments. The decentralized measuring system permits, amongst different issues, synchronous acquisition of measured knowledge from measurement modules, automobile buses and management items, direct measurement of present and voltage in high-voltage strains with as much as 1MHz in addition to multi-channel real-time energy evaluation.
A multi-level security idea in accordance with the provisions of DIN EN 61010 for electrical measuring, management and laboratory gear ensures secure high-voltage (HV) measurement. An isolation barrier within the measurement module ensures safe transmission of measured knowledge and secure energy provide. All SAB sensor cables function multi-layered insulation to guard in opposition to electrical shock. A blue intermediate insulation, which acts as a put on indicator, alerts injury to the cable sheath. The particularly developed HV connector for the sensor cable is plugged into the HV module socket by a kink-protection sleeve. The HV plug and HV sockets are designed to be touch-proof. Earlier than delivery, every particular person measuring module undergoes testing in accordance with DIN EN 61010, which is documented in a take a look at report. An accredited take a look at laboratory carries out kind exams of the whole system consisting of measurement modules and sign cables. As well as, the items are examined for EMC, shock and vibration resistance in addition to their diploma of safety of IP65 or IP67.
